UI

We only have the 1 kind of troop, but let’s put it into the UI.

  • Add a UI image in the top-left corner
    • Use “Assets/UI/Character.png”
  • Place a UI text counter next to it
    • Use TextMeshPro

Playfield.cs

When the user touches the playfield, we want to deploy the selected troops.

  • Remove the character from the scene
    • The one that we’ve been using to test up until now
  • Add the following public variables to Playfield
    • public GameObject m_characterPrefab
    • public int m_characterMax = 20
    • public float m_spawnDelay = 0.25f
    • public TextMeshProUGUI m_spawnCounter
  • Fill in m_characterPrefab with “Character.prefab”
  • Fill in m_spawnCounter with the UI text counter you created above
  • In Playfield.Start()
    • Change the text of m_spawnCounter to indicate how many troops are left
  • In Playfield.Update()
    • Look for mouse button (finger held down)
    • Convert the screen position of mouse/finger to a position on the ground
    • If that position is on the ground, spawn a troop at that location
    • Reduce the count of remaining troops
      • And update the UI counter
    • When all troops have been deployed, do not allow the player to deploy any more
    • Limit the troops to once every m_spawnDelay seconds

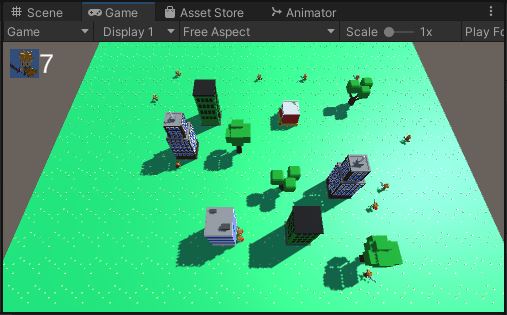

You can depoly your troops by dragging your finger around the screen. Troops

Commit and push before we do the “Choose Your Path”
