QuizGame.ReadAngle()

In the class QuizGame, look for the TODO in the ReadAngle() function.

    float ReadAngle()
    {
        float ang = 0.0f;
        {   // TODO read the accelerometer, and turn that into an angle
        }
        return ang;
    }
  • Read the direction of the gravity vector with Input.acceleration
    • Watch out for that vector coming back as (0, 0, 0)
    • That could happen if there is no accelerometer (like it’s on a PC)
  • We’ll be holding the phone sideways and tilting it face-down, so we’re looking for gravity to point down the Z axis when tilted
  • Use the gravity vector to calculate an angle with Mathf.Asin()
    • Mathf.Asin() returns radians, so use Mathf.Rad2Deg to convert it to degrees

QuizGame.Update()

We would like to test our ReadAngle() function, but we haven’t set up the game yet.
To test it, add a new function

void Update()
{
    // TODO your code here
}
  • In QuizGame.Update(), call ReadAngle() and set m_text.text equal to the result.
  • You can use .ToString() on a float to convert from the float to a string.

The game should now display the angle of the phone.

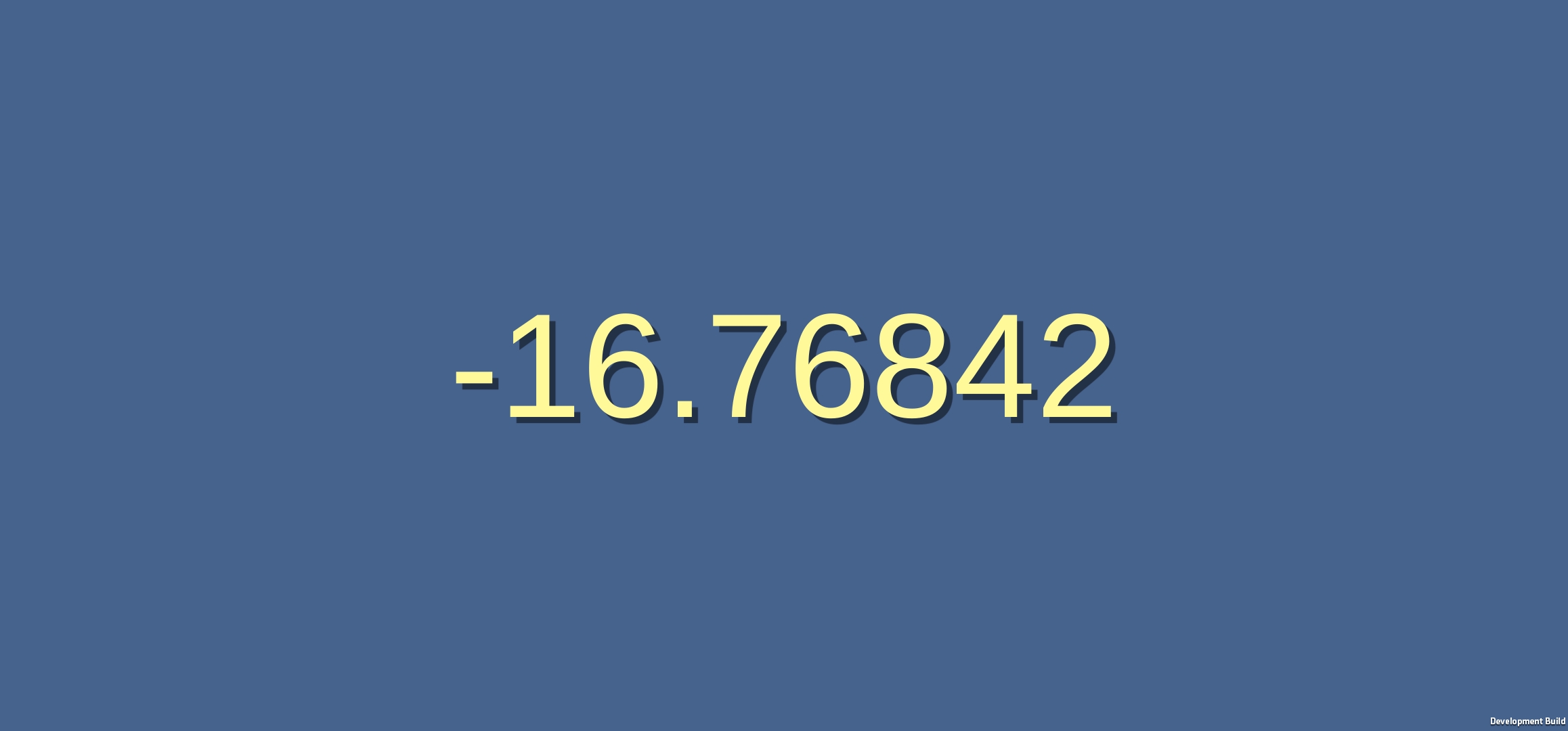

Test Angle It should show 0 degrees when held facing out (as if it’s on your head).
It should show positive when facing down and negative when facing up.

If you try it on a PC, you have no accelerometer, so you’ll just get 0 degrees.
You won’t be able to test out your ReadAngle() function without a phone.

QuizGame.ReadInput()

Now let’s fill in the TODO in the ReadInput() function

    QuizInput ReadInput()
    {
        QuizInput quizInput = new QuizInput();
        {   // TODO use ReadAngle and input.GetKey() to fill in quizInput
        }
        return quizInput;
    }
  • If the angle is greater than m_tiltAng, that means the phone is facing down
    • set quizInput.down to true
    • if not, make sure quizInput.down is false
  • If the angle is less than -m_tiltAng, that means the phone is facing up
    • set quizInput.up to true
    • if not, make sure quizInput.up is false
  • If the angle is between -m_resetAng and m_resetAng, that means the phone is centered
    • set quizInput.center to true
    • if not, make sure quizInput.center is false

You will notice that there’s a gap between m_tiltAng and m_resetAng.
We call this “hysteresis”.
This helps prevent the phone from bouncing in and out of the up/down/center states due to tiny vibrations.

Debugging everything on the phone can be a little tedious.
Let’s set up a way to provide input when running on the PC.

  • If the user presses the up arrow key Input.GetKey(KeyCode.UpArrow), set quizInput.up to true
    • be sure quizInput.center is false
  • If the user presses the down arrow key Input.GetKey(KeyCode.DownArrow), set quizInput.down to true
    • be sure quizInput.center is false
  • If neither is pressed, set quizInput.center to true
    • make sure the keyboard behavior does not override the accelerometer behavior when centering

QuizGame.Update()

Let’s test out our input function.

  • Take out your ReadAngle() test in the Update() function.
  • Replace it with a call to ReadInput().
  • You’ll need to get a little creative to display the 3 states up, down, and center at the same time.
  • Keep in mind that we’re testing out the code… if there’s a bug, it may be possible for the variables to be incorrectly set to up, down, and center at the same time.

Try it out.

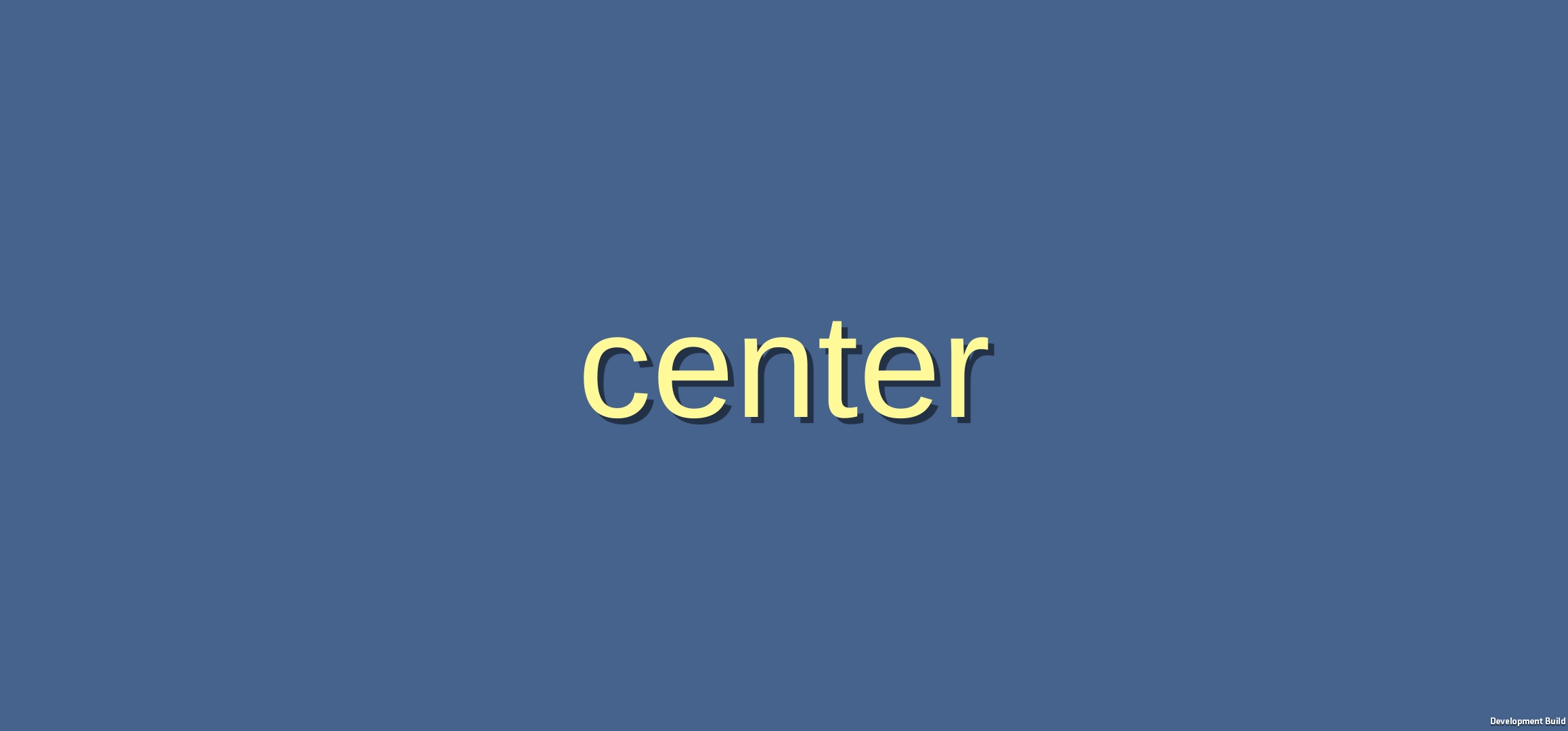

Test Input Make a few iterations until you get it all working right.

Remove QuizGame.Update()

Now that we’re done with the testing, don’t forget to disable your Update() function.
It might be smart to keep it around commented out in case you need to debug it later.
But for now, make sure it doesn’t interfere with the rest of the game.
